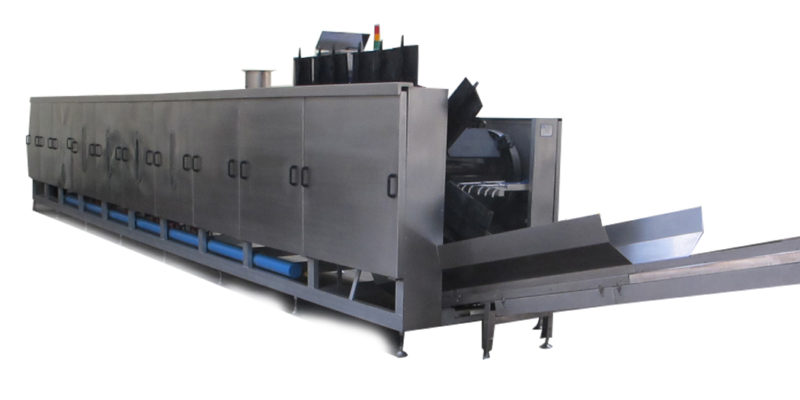

| Kresna KWP-60 is automatic waffle plate machine complete with PLC and HMI. There have 60 pair special cast rigid baking plate with 0,03 mm coating Teflon.
Baking line is provided with efficient and safety burner system |
Product Specifications
| Machine Specs | Details | |
|---|---|---|
| Capacity | 30 Kg / Jam Finish Product | |
| Dimension | L 10.7 (Exclude Outlet Conveyor) x W 2.35 x H 3.17 m (include exhaust) | |
| Weight | approx 16 ton | |
| Plates & Support | 60 pair @ 240 mm x 440 mm. | |
| Material Cast Iron FCD 30, pattern surface, 30 micron teflon coated | ||
| Hook locking system, hinges with thrust | ||
| 4 pcs running wheel with cylindrical roller bearing | ||
| Spray oil for lubricant plates, controled by plc | ||
| Depositor | Depositor unit with wirecut system | |
| 6 Nozzle | ||
| Drive by pnumatic cylinder | ||
| Setting automatically by PLC | ||
| 2 pcs Feed Roller drive by electric motor | ||
| Heating Mode | Curve type burner with nozzles on top and bottom | |
| LPG consumption approx 8 kg/hour | ||
| Blower 1.5 kw multi stage, auto ignition, solenoid valve, regulator, gauge meter, burner control unit, air-gas mixer, and thermocontroller | ||
| Infrared thermosensor for detect plate temperature | ||
| Drive | Main Motor Drive : 1 inverter 1.1 KW with motor drive 1.1 KW | |
| Feed Roller unit : 1 inverter 1.1 KW with motor drive 1.1 KW | ||
| Outlet Conveyor : 1 inverter 0.37 KW with motor drive 0.37 KW | ||
| Fan Blower unit : 1 inverter 1.1 KW with motor drive 1.1 KW | ||
| Product release | air jet ejectors controlled by PLC | |
| Power Consumtion | 3 phase – 8 KW – 380 V | |
| Frame | Main Frame : UNP Chanal, 100 x 50 x 5 mm | |
| Top Frame : Bend Chanal, 40 x 40 mm | ||
| 16 adjuster foot step | ||
| Cover | Insulation cover thk 50 mm | |
| Plate : SUS 201 thk 1.5 mm | ||
| Insulation : Rockwool density #120 thk 50 mm | ||
| Panel Electrical | Standing, separate from Main machine | |
| PLC | Mitsubishi | |
| HMI Interface | Mitsubishi touch screen 10.0 inch | |
| Electrical Component | Mitsubishi & Schneider & Omron | |
| Pnumatic Component | SMC & EMC | |
| Outlet conveyor | 3000 x 600 x 1000 mm , inclined belt conveyor system |
