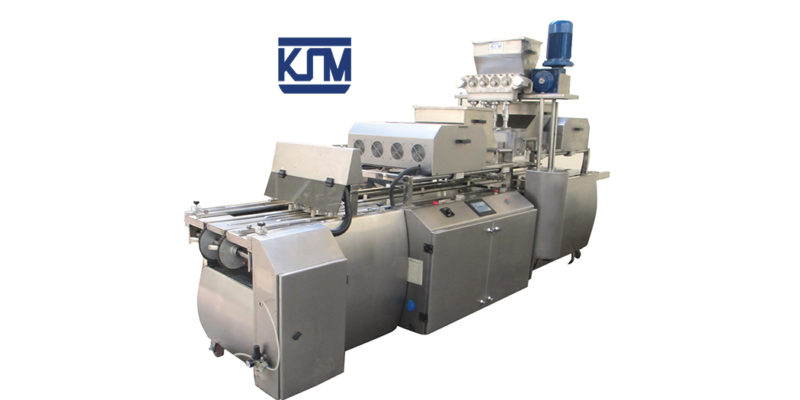

With four nozzle extruder system, can make cookies in various shape and colors. With KRESNA KME-4N you can optimze your creativity and innovation to create unique and interesting products. KRESNA KME-4N is equipped with 2 dough hoppers and 1 filler hooper so you can make centerfilled cookies with 2 casing color
Product Specifications
| Machine Specs | Details |
|---|---|
| Capacity | 13.000 – 16.000 pcs / hour |
| Dimension | 4500 x 1400 x 2250 mm |
| Weight | 1250 kg |
| Nozzle & Extruder | 2 set base hooper capacity 40 Kg |
| 2 set base extruder with 4 screw | |
| 1 set filler hooper capacity 35 Kg | |
| 1 set filler extruder with 4 feeder screw | |
| 4 nozzle with 5 kind standard shape | |
| Cutting Unit | Diafragma system with 4 set cutting device up to diameter 35 mm |
| Product Weight | 8 to 55 gr |
| Tray dimension | 600 x 400 mm |
| Drive | Base unit : 8 inverters 0.37 KW with motor drive 0.37 KW |
| Filler unit : 1 inverter 2.2 KW with motor drive 2.2 KW | |
| Cutting unit : Inverter 0.37 KW and 0.75 KW with motor drive 0.37 KW and 0.75 KW | |
| Conveyor : 1 inverter 0.37 KW with motor drive 0.37 KW | |
| Pressing Unit | 4 pressing device drive by pnumatic piston and controlled by PLC |
| Power Consumtion | 3 phase – 10 kw – 380 v |
| Frame | Main frame : SUS 304 hollow 80 x 40 |
| Sliding base hooper : Round Bar SUS 304 diameter 38 mm | |
| 4 Castor Wheel with 4 adjuster foot step | |
| Cover | All cover uss SUS plate 304 t=1.5 mm,finishing DOP |
| PLC | Siemens / Mitsubishi |
| HMI Interface | Mitsubishi touch screen 7.0 inch |
| Electrical Component | Mitsubishi & Schneider & Omron |
| Panel Electrical | On left side from main machine |
